CYCLONE
Touch Free In-Bay Automatic Carwash

The Power Pak's Exclusive Features are Uniquely Suited for Low Labor Operation

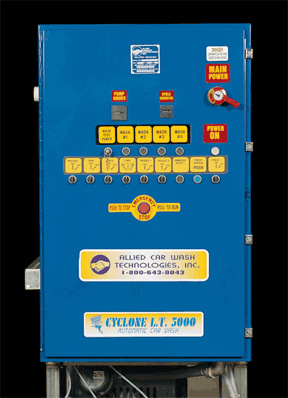

Panel Front

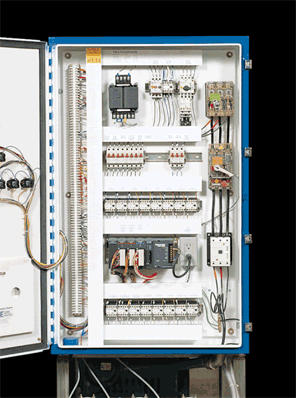

Inside Electrical



       Standard Equipment

1) UL approved electrical panel
2) Power on light
3) User friendly external controls:
   • Emergency stop
   • Power reset
   • Computer reset with indicator light
   • Individual function test switches
4) Pump hour meter 5) Cycle counter
6) Car wash ready/ meter enable green indicator     light
Special Features:
• Main power disconnect, shuts power off when     door is opened
• Key lock out for manual override of wash     selection
• Color coordinated terminal strip for ease of     installation and service

        Standard Equipment

1) 3-phase main power hook-up. Requires
     4-wires plus earth ground
2) Color-coded terminal bar allows easy     installation by your electrician

       Optional Equipment

CYCLETRON 9600 programming system allows operator to custom program functions for all four wash cycles

UTILITY REQUIREMENTS FOR ONE CYCLONE

Your Power Supply Amps Required
    208V 125
    240V 100
    460V 5o
Water Peak
    57 GPM 040PSI Minimum 1" water line
(Water pressure regulator may also be required-not included) NOTE: It is the customers responsibility to meet or exceed local & state building codes.

End View
        Standard Equipment

1) Pre-plumbed air regulator and solenoid manifold
2) High pressure discharge manifold
3) Triplex pump GIANT LP-1 22,standard,
    (Cat 3545 @30HP available at extra charge)
4) ULTRAARCTIC Freeze Control.
    Pre-plumbed with normally open solenoid and thermostat that adjusts in 10 increments

       Optional Equipment

A) WEEPMIZER computer control for freeze prevention     system
B) Double Cyclone on one frame
